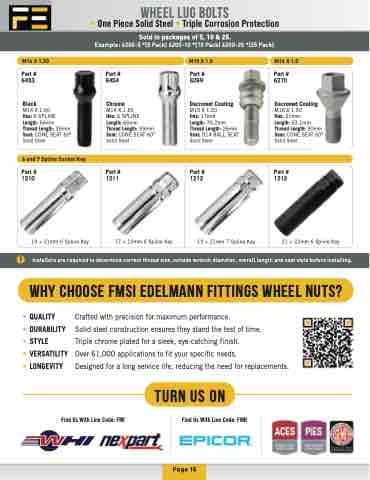

P. 16

 WHEEL LUG BOLTS
• One Piece Solid Steel • Triple Corrosion Protection
  Sold in packages of 5, 10 & 25.
Example: 6200-5 *(5 Pack) 6200-10 *(10 Pack) 6200-25 *(25 Pack).
M14 X 1.50     M15 X 1.5   M16 X 1.5
  Part # 6454
Chrome
M14 X 1.50
Hex: 6 SPLINE Length: 66mm
Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
  Part # 6269
Dacromet Coating
M15 X 1.50
Hex: 17mm
Length: 76.2mm Thread Length: 26mm Seat: R14 BALL SEAT Solid Steel
 Part # 6453
Black
M14 X 1.50
Hex: 6 SPLINE Length: 66mm
Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
6 and 7 Spline Socket Key
Part # 1210
19 + 21mm 6 Spline Key
Part # 6270
Dacromet Coating
M16 X 1.50
Hex: 21mm
Length: 63.1mm Thread Length: 30mm Seat: CONE SEAT 60o Solid Steel
Part # 1213
21 + 22mm 6 Spline Key
   Part # 1211
17 + 19mm 6 Spline Key
 Part # 1212
19 + 21mm 7 Spline Key
  Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
 Why Choose FMSI Edelmann Fittings Wheel Nuts?
• QUALITY
• DURABILITY
• STYLE
• VERSATILITY
• LONGEVITY
Crafted with precision for maximum performance.
Solid steel construction ensures they stand the test of time.
Triple chrome plated for a sleek, eye-catching finish.
Over 61,000 applications to fit your specific needs.
Designed for a long service life, reducing the need for replacements.
