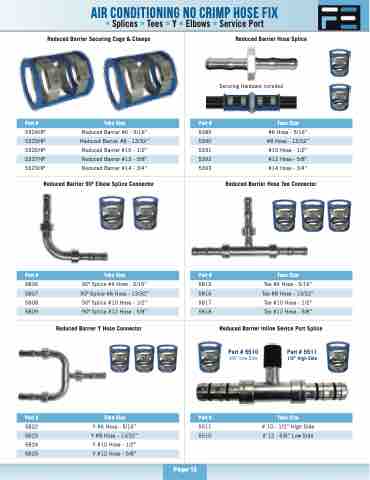

AIR CONDITIONING NO CRIMP HOSE FIX
• Splices • Tees • Y • Elbows • Service Port
Reduced Barrier Securing Cage & Clamps
Reduced Barrier Hose Splice
Securing Hardware included
Part # Tube Size
Part # Tube Size
5324HP Reduced Barrier #6 - 5/16”
5389 #6 Hose - 5/16”
5325HP Reduced Barrier #8 - 13/32”
5390 #8 Hose - 13/32”
5326HP Reduced Barrier #10 - 1/2”
5391 #10 Hose - 1/2”
5327HP Reduced Barrier #12 - 5/8”
5392 #12 Hose - 5/8”
5329HP Reduced Barrier #14 - 3/4”
5393 #14 Hose - 3/4”
Reduced Barrier 90º Elbow Splice Connector
Reduced Barrier Hose Tee Connector
Part # Tube Size
Part # Tube Size
5806 90º Splice #6 Hose - 5/16”
5815 Tee #6 Hose - 5/16”
5807 90º Splice #8 Hose - 13/32”
5816 Tee #8 Hose - 13/32”
5808 90º Splice #10 Hose - 1/2”
5817 Tee #10 Hose - 1/2”
5809 90º Splice #12 Hose - 5/8”
5818 Tee #12 Hose - 5/8”
Reduced Barrier Y Hose Connector
Reduced Barrier Inline Sevice Port Splice
Part # 5510
5/8” Low Side
Part # 5511
1/2” High Side
Part # Tube Size
Part # Tube Size
5822 Y #6 Hose - 5/16”
5511 # 10 - 1/2” High Side
5823 Y #8 Hose - 13/32”
5510 # 12 - 5/8” Low Side
5824 Y #10 Hose - 1/2”
5825 Y #12 Hose - 5/8”
