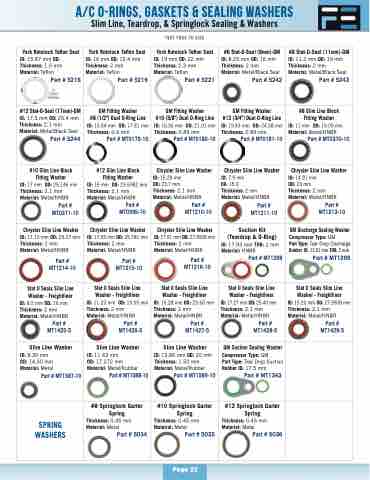

Page 23 - FMSI Air Conditioning Catalogue | ENGLISH

A/C O-RINGS, GASKETS & SEALING WASHERS
Slim Line, Teardrop, & Springlock Sealing & Washers
York Rotolock Teflon Seal
ID: 15.87 mm OD:
Thickness: 1.5 mm
Material: Teflon
York Rotolock Teflon Seal
ID: 16 mm OD: 19.4 mm
Thickness: 2 mm
Material: Teflon
Part # 5216
Part # 5219
*NOT TRUE TO SIZE
York Rotolock Teflon Seal
ID: 19 mm OD: 22 mm
Thickness: 2.3 mm
Material: Teflon
Part # 5221
#6 Stat-O-Seal (8mm)-GM
ID: 8.25 mm OD: 16 mm
Thickness: 2 mm
Material: Metal/Black Seal
Part # 5242
#8 Stat-O-Seal (11mm)-GM
ID: 11.2 mm OD: 19 mm
Thickness: 2 mm
Material: Metal/Black Seal
Part # 5243
#12 Stat-O-Seal (17mm)-GM
ID: 17.3 mm OD: 25.4 mm
Thickness: 2.1 mm
Material: Metal/Black Seal
Part # 5244
GM Fitting Washer
#8 (1/2") Dual O-Ring Line
ID: 13.54 mm OD: 17.81 mm
Thickness: 0.6 mm
Part # MT0179-10
GM Fitting Washer
#10 (5/8") Dual O-Ring Line
ID: 16.36 mm OD: 21.01 mm
Thickness: 0.89 mm
Part # MT0180-10
GM Fitting Washer
#12 (3/4") Dual O-Ring Line
ID: 19.43 mm OD: 24.38 mm
Thickness: 0.89 mm
Part # MT0181-10
#8 Slim Line Block
Fitting Washer
ID: 11 mm OD: 19.05 mm
Material: Metal/HNBR
Part # MT0370-10
#10 Slim Line Block
Fitting Washer
ID: 17 mm OD: 25.146 mm
Thickness: 2.1 mm
Material: Metal/HNBR
Part #
MT0371-10
#12 Slim Line Block
Fitting Washer
ID: 15 mm OD: 23.6982 mm
Thickness: 2.1 mm
Material: Metal/HNBR
Part #
MT0395-10
Chrysler Slim Line Washer
ID: 15.28 mm
OD: 23.7 mm
Thickness: 2.1 mm
Material: Metal/HNBR
Part #
MT1210-10
Chrysler Slim Line Washer
ID: 7.9 mm
OD: 15.9
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1211-10
Chrysler Slim Line Washer
ID: 14.91 mm
OD: 23 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1213-10
Chrysler Slim Line Washer
ID: 17.15 mm OD: 25.07 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1214-10
Chrysler Slim Line Washer
ID: 17.53 mm OD: 25.781 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1215-10
Chrysler Slim Line Washer
ID: 17.91 mm OD: 27.9908 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1216-10
Suction Kit
(Teardrop & O-Ring)
ID: 17.93 mm THK: 2 mm
Material: HNBR
Part # MT1298
GM Discharge Sealing Washer
Compressor Type: GM
Part Type: Tear Drop Discharge
Rubber ID: 15.01 mm THK: 2 mm
Part # MT1299
Stat 0 Seals Slim Line
Washer - Freightliner
ID: 8.5 mm OD: 16 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1425-5
Stat 0 Seals Slim Line
Washer - Freightliner
ID: 11.23 mm OD: 19.05 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1426-5
Stat 0 Seals Slim Line
Washer - Freightliner
ID: 15.28 mm OD: 23.60 mm
Thickness: 2 mm
Material: Metal/HNBR
Part #
MT1427-5
Stat 0 Seals Slim Line
Washer - Freightliner
ID: 17.27 mm OD: 25.40 mm
Thickness: 2.1 mm
Material: Metal/HNBR
Part #
MT1428-5
Stat 0 Seals Slim Line
Washer - Freightliner
ID: 15.20 mm OD: 27.9908 mm
Thickness: 2.1 mm
Material: Metal/HNBR
Part #
MT1429-5
Slim Line Washer
ID: 8.30 mm
OD: 14.30 mm
Material: Metal
Part # MT1587-10
Slim Line Washer
ID: 11.43 mm
OD: 17.272 mm
Material: Metal/Rubber
Part # MT1588-10
Slim Line Washer
ID: 13.86 mm OD: 20 mm
Thickness: 1.50 mm
Material: Metal/Rubber
Part # MT1589-10
GM Suction Sealing Washer
Compressor Type: GM
Part Type: Tear Drop Suction
Rubber ID: 17.5 mm
Part # MT1343
#8 Springlock Garter
Spring
Thickness: 0.45 mm
Material: Metal
#10 Springlock Garter
Spring
Thickness: 0.45 mm
Material: Metal
SPRING
WASHERS
Part # 5034
Part # 5035
#12 Springlock Garter
Spring
Thickness: 0.45 mm
Material: Metal
Part # 5036
Page 22
