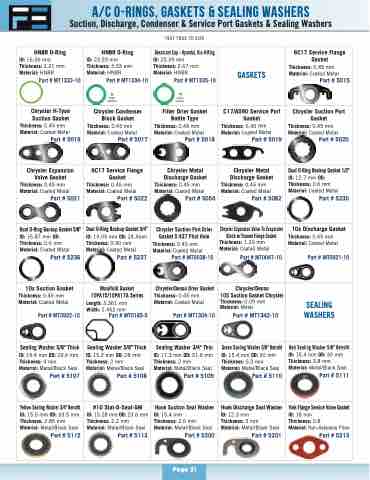

P. 22
A/C O-RINGS, GASKETS & SEALING WASHERS
Suction, Discharge, Condenser & Service Port Gaskets & Sealing Washers
*NOT TRUE TO SIZE
HNBR O-Ring
ID: 16.36 mm
Thickness: 2.21 mm
Material: HNBR
Part # MT1333-10
HNBR O-Ring
ID: 23.39 mm
Thickness: 3.53 mm
Material: HNBR
Part # MT1334-10
Dessicant Cap - Hyundai, Kia O-Ring
ID: 23.39 mm
Thickness: 2.67 mm
Material: HNBR
Part # MT1335-10
GASKETS
6C17 Service Flange
Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5015
Chrysler H-Tyoe
Suction Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5016
Chrysler Condenser
Block Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5017
Filter Drier Gasket
Bottle Type
Thickness: 0.45 mm
Material: Coated Metal
Part # 5018
C17/A590 Service Port
Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5019
Chrysler Suction Port
Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5020
Chrysler Expansion
Valve Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5021
6C17 Service Flange
Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5022
Chrysler Metal
Discharge Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5054
Chrysler Metal
Discharge Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # 5082
Dual O-Ring Backup Gasket 1/2"
ID: 12.7 mm OD:
Thickness: 0.6 mm
Material: Coated Metal
Part # 5235
Dual O-Ring Backup Gasket 5/8"
ID: 15.87 mm OD:
Thickness: 0.6 mm
Material: Coated Metal
Part # 5236
Dual O-Ring Backup Gasket 3/4"
ID: 19.05 mm OD: 24.4mm
Thickness: 0.90 mm
Material: Coated Metal
Part # 5237
Chrysler Suction Port Drier
Gasket 0.437 Pilot Hole
Thickness: 0.45 mm
Material: Coated Metal
Part # MT0038-10
Chrysler Expansion Valve To Evaporator
Block w/ Foamet Flange Gasket
Thickness: 1.20 mm
Material: Coated Metal
Part # MT0047-10
10s Discharge Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # MT0921-10
10s Suction Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # MT0922-10
Manifold Gasket
10PA15/10PA17A Series
Length: 3.361 mm
Width: 2.462 mm
Part # MT0185-5
Chrysler/Denso Drier Gasket
Thickness: 0.45 mm
Material: Coated Metal
Part # MT1304-10
Chrysler/Denso
10S Suction Gasket Chrysler
Thickness: 0.09 mm
Material: Metal
Part # MT1342-10
SEALING
WASHERS
Sealing Washer 5/8" Thick
ID: 15.4 mm OD: 29.6 mm
Thickness: 4 mm
Material: Metal/Black Seal
Part # 5107
Sealing Washer 5/8" Thick
ID: 15.2 mm OD: 28 mm
Thickness: 2 mm
Material: Metal/Black Seal
Part # 5108
Sealing Washer 3/4" Thin
ID: 17.3 mm OD: 31.6 mm
Thickness: 2 mm
Material: Metal/Black Seal
Part # 5109
Green Sealing Washer 5/8" Retrofit
ID: 15.4 mm OD: 30 mm
Thickness: 5.3 mm
Material: Metal/Black Seal
Part # 5110
Red Sealing Washer 5/8" Retrofit
ID: 15.4 mm OD: 30 mm
Thickness: 3.8 mm
Material: Metal/Black Seal
Part # 5111
Yellow Sealing Washer 3/4" Retrofit
ID: 15.5 mm OD: 33.5 mm
Thickness: 2.85 mm
Material: Metal/Black Seal
Part # 5112
#10 Stat-O-Seal-GM
ID: 15.28 mm OD: 23.6 mm
Thickness: 2.2 mm
Material: Metal/Black Seal
Part # 5113
Hook Suction Seal Washer
ID: 15.4 mm
Thickness: 2.6 mm
Material: Metal/Black Seal
Part # 5200
Hook Discharge Seal Washer
ID: 12.3 mm
Thickness: 3 mm
Material: Metal/Black Seal
Part # 5201
York Flange Service Valve Gasket
ID: 18 mm
Thickness: 0.8
Material: Non-Asbestos Fiber
Part # 5213
