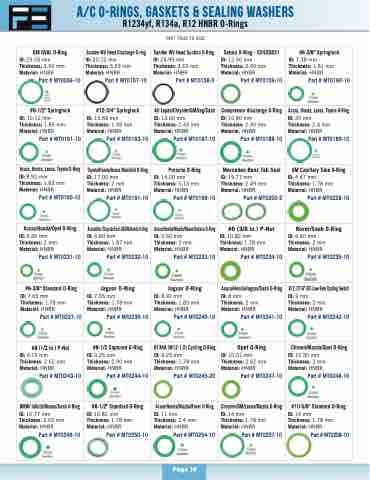

Page 20 - FMSI Air Conditioning Catalogue | ENGLISH

A/C O-RINGS, GASKETS & SEALING WASHERS
R1234yf, R134a, R12 HNBR O-Rings
*NOT TRUE TO SIZE
GM OVAL O-Ring
ID: 23.05 mm
Thickness: 3.50 mm
Material: HNBR
Part # MT0036-10
Sanden WV Head Discharge O-ring
ID: 20.22 mm
Thickness: 3.53 mm
Material: HNBR
Part # MT0157-10
Sanden WV Head Suction O-Ring
ID: 24.99 mm
Thickness: 3.53 mm
Material: HNBR
Part # MT0158-5
Saturn O-Ring - 52455831
ID: 12.50 mm
Thickness: 2.49 mm
Material: HNBR
Part # MT0159-10
#6-3/8" Springlock
ID: 7.38 mm
Thickness: 1.81 mm
Material: HNBR
Part # MT0160-10
#8-1/2" Springlock
ID: 10.12 mm
Thickness: 1.85 mm
Material: HNBR
Part # MT0161-10
#12-3/4" Springlock
ID: 15.68 mm
Thickness: 1.93 mm
Material: HNBR
Part # MT0163-10
All Japan/Chrysler/GM/Jag/Saab
ID: 13.60 mm
Thickness: 2.43 mm
Material: HNBR
Part # MT0187-10
Compressor discharge O-Ring
ID: 10.80 mm
Thickness: 2.40 mm
Material: HNBR
Part # MT0188-10
Acura, Honda, Lexus, Toyota O-Ring
ID: 20 mm
Thickness: 2.4 mm
Material: HNBR
Part # MT0189-10
Acura, Honda, Lexus, Toyota O-Ring
ID: 8.92 mm
Thickness: 1.83 mm
Material: HNBR
Part # MT0190-10
Toyota/Honda/Acura Manifold O-Ring
ID: 17.00 mm
Thickness: 2 mm
Material: HNBR
Part # MT0191-10
Porsche O-Ring
ID: 14.00 mm
Thickness: 0.10 mm
Material: HNBR
Part # MT0199-10
Mercedes Benz Tab Seal
ID: 19.71 mm
Thickness: 2.49 mm
Material: HNBR
Part # MT0200-2
GM Capillary Tube O-Ring
ID: 4.47 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0228-10
Acura/Honda/Opel O-Ring
ID: 6.60 mm
Thickness: 2 mm
Material: HNBR
Part # MT0231-10
Acura/Alfa /Chrysler/Ford-UK/GM/Honda O-Ring
ID: 6.80 mm
Thickness: 1.87 mm
Material: HNBR
Part # MT0232-10
Acura/Honda/Mazda/Rover/Subaru O-Ring
ID: 6.60 mm
Thickness: 2 mm
Material: HNBR
Part # MT0233-10
#6 (3/8 in.) P-Nut
ID: 10.82 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0234-10
Rover/Saab O-Ring
ID: 6.60 mm
Thickness: 2 mm
Material: HNBR
Part # MT0235-10
#6-3/8" Standard O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0237-10
Jaguar O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0239-10
Jaguar O-Ring
ID: 8.92 mm
Thickness: 1.83 mm
Material: HNBR
Part # MT0240-10
Acura/Honda/Jaguar/Saab O-Ring
ID: 8 mm
Thickness: 2 mm
Material: HNBR
Part # MT0241-10
R12 (7/16"-20) Low-Side Cycling Switch
ID: 9 mm
Thickness: 2 mm
Material: HNBR
Part # MT0242-10
#8 (1/2 in.) P-Nut
ID: 9.19 mm
Thickness: 2.62 mm
Material: HNBR
Part # MT0243-10
#8-1/2 Captured O-Ring
ID: 9.25 mm
Thickness: 2.90 mm
Material: HNBR
Part # MT0244-10
R134A (M12-1.5) Cycling O-Ring
ID: 9.25 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0245-20
Opel O-Ring
ID: 10.01 mm
Thickness: 2.62 mm
Material: HNBR
Part # MT0247-10
Citroen/Mazda/Opel O-Ring
ID: 10.50 mm
Thickness: 2 mm
Material: HNBR
Part # MT0248-10
BMW/ Infiniti/Nissan/Saab O-Ring
ID: 10.77 mm
Thickness: 2.62 mm
Material: HNBR
Part # MT0249-10
#8-1/2" Standard O-Ring
ID: 10.82 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0250-10
Acura/Honda/Mazda/Rover O-Ring
ID: 11 mm
Thickness: 2.4 mm
Material: HNBR
Part # MT0254-10
Chrysler/GM/Lexus/Mazda O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0257-10
#10-5/8" Standard O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: HNBR
Part # MT0258-10
