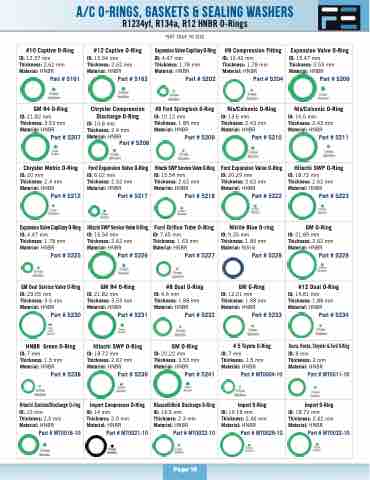

A/C O-RINGS, GASKETS & SEALING WASHERS
R1234yf, R134a, R12 HNBR O-Rings
#10 Captive O-Ring
ID: 12.37 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5161
#12 Captive O-Ring
ID: 13.94 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5162
*NOT TRUE TO SIZE
Expansion Valve Capillary O-Ring
ID: 4.47 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5202
#8 Compression Fitting
ID: 12.42 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5204
Expansion Valve O-Ring
ID: 15.47 mm
Thickness: 3.53 mm
Material: HNBR
Part # 5206
GM R4 O-Ring
ID: 21.82 mm
Thickness: 3.53 mm
Material: HNBR
Part # 5207
Chrysler Compression
Discharge O-Ring
ID: 10.8 mm
Thickness: 2.4 mm
Material: HNBR
Part # 5208
#8 Ford Springlock O-Ring
ID: 10.12 mm
Thickness: 1.85 mm
Material: HNBR
Part # 5209
Nis/Calsonic O-Ring
ID: 13.6 mm
Thickness: 2.43 mm
Material: HNBR
Part # 5210
Nis/Calsonic O-Ring
ID: 16.5 mm
Thickness: 2.43 mm
Material: HNBR
Part # 5211
Chrysler Metric O-Ring
ID: 20 mm
Thickness: 2.4 mm
Material: HNBR
Ford Expansion Valve O-Ring
ID: 6.02 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5212
Part # 5217
Hitachi SWP Service Valve O-Ring
ID: 15.54 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5218
Ford Expansion Valve O-Ring
ID: 20.29 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5222
Hitachi SWP O-Ring
ID: 18.72 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5223
Expansion Valve Capillary O-Ring
ID: 4.47 mm
Thickness: 1.78 mm
Material: HNBR
Hitachi SWP Service Valve O-Ring
ID: 15.54 mm
Thickness: 2.62 mm
Material: HNBR
Ford Orifice Tube O-Ring
ID: 7.65 mm
Thickness: 1.63 mm
Material: HNBR
Part # 5225
Part # 5226
Part # 5227
Nitrile Blue O-ring
ID: 9.25 mm
Thickness: 1.85 mm
Material: Nitrile
Part # 5228
GM O-Ring
ID: 21.89 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5229
GM Oval Service Valve O-Ring
ID: 23.05 mm
Thickness: 3.5 mm
Material: HNBR
Part # 5230
GM R4 O-Ring
ID: 21.82 mm
Thickness: 3.53 mm
Material: HNBR
Part # 5231
#8 Dual O-Ring
ID: 9.6 mm
Thickness: 1.88 mm
Material: HNBR
Part # 5232
GM O-Ring
ID: 12.01 mm
Thickness: 1.88 mm
Material: HNBR
Part # 5233
#12 Dual O-Ring
ID: 14.81 mm
Thickness: 1.88 mm
Material: HNBR
Part # 5234
HNBR Green O-Ring
ID: 7 mm
Thickness: 1.5 mm
Material: HNBR
Part # 5238
Hitachi SWP O-Ring
ID: 18.72 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5239
GM O-Ring
ID: 20.22 mm
Thickness: 3.53 mm
Material: HNBR
Part # 5241
# 5 Toyota O-Ring
ID: 7 mm
Thickness: 1.5 mm
Material: HNBR
Part # MT0004-10
Acura, Honda, Chrysler & Ford O-Ring
ID: 8 mm
Thickness: 2 mm
Material: HNBR
Part # MT0011-10
Hitachi Suction/Discharge O-ring
ID: 10 mm
Thickness: 2.5 mm
Material: HNBR
Part # MT0016-10
Import Compressor O-Ring
ID: 14 mm
Thickness: 2.5 mm
Material: HNBR
Part # MT0021-10
Nissan/Infiniti Discharge O-Ring
ID: 14.3 mm
Thickness: 2.3 mm
Material: HNBR
Part # MT0022-10
Import O-Ring
ID: 19.18 mm
Thickness: 2.46 mm
Material: HNBR
Part # MT0029-10
Import O-Ring
ID: 18.72 mm
Thickness: 2.62 mm
Material: HNBR
Part # MT0032-10
