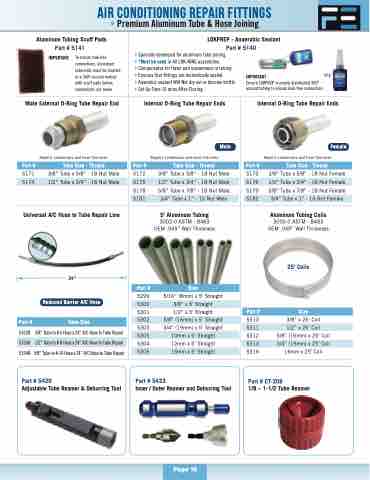

AIR CONDITIONING REPAIR FITTINGS
• Premium Aluminum Tube & Hose Joining
Aluminum Tubing Scuff Pads Part # 5141
IMPORTANT:
To ensure leak free
connections, aluminum
tube ends must be cleaned
in a 360º circular motion
with scuff pads before
connections are made.
LOKPREP - Anaerobic Sealant
Part # 5140
• Specially developed for aluminum tube joining
• *Must be used in All LOK-RING assemblies
• Compensates for flaws and unevenness in tubing
• Ensures that fittings are hermetically sealed
• Anaerobic sealant Will Not dry out or become brittle
• Set Up Time 10 mins After Closing
IMPORTANT
Ensure LOKPREP is evenly distributed 360º
around tubing to ensure leak free connection.
65g
Male External O-Ring Tube Repair End
Internal O-Ring Tube Repair Ends
Internal O-Ring Tube Repair Ends
Male
Female
Repairs condensers and hose line ends
Repairs condensers and hose line ends
Repairs condensers and hose line ends
Part # Tube Size - Thread
Part # Tube Size - Thread
Part # Tube Size - Thread
5171 3/8” Tube x 5/8” - 18 Nut Male
5172 3/8” Tube x 5/8” - 18 Nut Male
5173 3/8” Tube x 5/8” - 18 Nut Female
5174 1/2” Tube x 3/4” - 18 Nut Male
5175 1/2” Tube x 3/4” - 18 Nut Male
5176 1/2” Tube x 3/4” - 18 Nut Female
5178 5/8” Tube x 7/8” - 18 Nut Male
5179 5/8” Tube x 7/8” - 18 Nut Female
5181 3/4” Tube x 1” - 16 Nut Male
5182 3/4” Tube x 1” - 16 Nut Female
Universal A/C Hose to Tube Repair Line
5’ Aluminum Tubing
3003-0 ASTM - B483
OEM .049” Wall Thickness
Aluminum Tubing Coils
3003-0 ASTM - B483
OEM .049” Wall Thickness
25’ Coils
24”
Reduced Barrier A/C Hose
Part # Size
5299 5/16” (8mm) x 5’ Straight
5300 3/8” x 5’ Straight
5301 1/2” x 5’ Straight
Part # Size
Part # Tube Size
5302 5/8” (16mm) x 5’ Straight
5310 3/8” x 25’ Coil
5303 3/4” (19mm) x 5’ Straight
5311 1/2” x 25’ Coil
5352R 3/8” Tube to # 6 Hose x 24” A/C Hose to Tube Repair
5306 10mm x 5’ Straight
5312 5/8” (16mm) x 25’ Coil
5353R 1/2” Tube to # 8 Hose x 24” A/C Hose to Tube Repair
5304 12mm x 5’ Straight
5313 3/4” (19mm) x 25’ Coil
5354R 5/8” Tube to # 10 Hose x 24” A/C Hose to Tube Repair
5305 16mm x 5’ Straight
5316 16mm x 25’ Coil
Part # 5429
Adjustable Tube Reamer & Deburring Tool
Part # 5433
Inner / Outer Reamer and Deburring Tool
Part # CT-208
1/8 – 1-1/2 Tube Reamer
