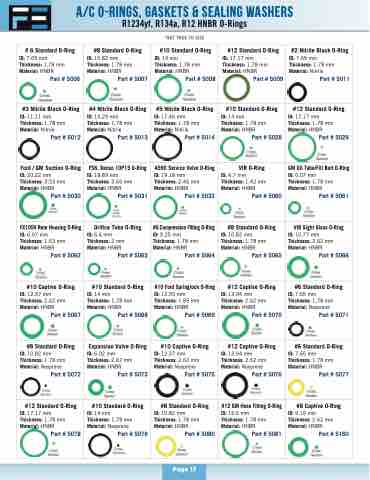

P. 18
A/C O-RINGS, GASKETS & SEALING WASHERS
R1234yf, R134a, R12 HNBR O-Rings
# 6 Standard O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5006
#8 Standard O-Ring
ID: 10.82 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5007
*NOT TRUE TO SIZE
#10 Standard O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5008
#12 Standard O-Ring
ID: 17.17 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5009
#2 Nitrile Black O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: Nitrile
Part # 5011
#3 Nitrile Black O-Ring
ID: 11.11 mm
Thickness: 1.78 mm
Material: Nitrile
Part # 5012
#4 Nitrile Black O-Ring
ID: 14.29 mm
Thickness: 1.78 mm
Material: Nitrile
Part # 5013
#5 Nitrile Black O-Ring
ID: 17.46 mm
Thickness: 1.78 mm
Material: Nitrile
Part # 5014
#10 Standard O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5028
#12 Standard O-Ring
ID: 17.17 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5029
Ford / GM Suction O-Ring
ID: 20.22 mm
Thickness: 3.53 mm
Material: HNBR
FS6, Denso 10P15 O-Ring
ID: 18.89 mm
Thickness: 3.66 mm
Material: HNBR
Part # 5030
Part # 5031
A590 Service Valve O-Ring
ID: 19.18 mm
Thickness: 2.46 mm
Material: HNBR
Part # 5032
VIR O-Ring
ID: 4.7 mm
Thickness: 1.42 mm
Material: HNBR
GM Oil Tube/Fill Bolt O-Ring
ID: 6.07 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5060
Part # 5061
FX105V Rear Housing O-Ring
ID: 6.07 mm
Thickness: 1.63 mm
Material: HNBR
Orifice Tube O-Ring
ID: 6.6 mm
Thickness: 2 mm
Material: HNBR
#6 Compression Fitting O-Ring
ID: 9.25 mm
Thickness: 1.78 mm
Material: HNBR
#8 Standard O-Ring
ID: 10.82 mm
Thickness: 1.78 mm
Material: HNBR
VIR Sight Glass O-Ring
ID: 10.77 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5062
Part # 5063
Part # 5064
Part # 5065
Part # 5066
#10 Captive O-Ring
ID: 12.37 mm
Thickness: 2.62 mm
Material: HNBR
#10 Standard O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: HNBR
#10 Ford Springlock O-Ring
ID: 12.93 mm
Thickness: 1.85 mm
Material: HNBR
Part # 5067
Part # 5068
Part # 5069
#12 Captive O-Ring
ID: 13.94 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5070
#6 Standard O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: Neoprene
Part # 5071
#8 Standard O-Ring
ID: 10.82 mm
Thickness: 1.78 mm
Material: Neoprene
Part # 5072
Expansion Valve O-Ring
ID: 6.02 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5073
#10 Captive O-Ring
ID: 12.37 mm
Thickness: 2.62 mm
Material: Neoprene
Part # 5075
#12 Captive O-Ring
ID: 13.94 mm
Thickness: 2.62 mm
Material: Neoprene
Part # 5076
#6 Standard O-Ring
ID: 7.65 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5077
#12 Standard O-Ring
ID: 17.17 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5078
#10 Standard O-Ring
ID: 14 mm
Thickness: 1.78 mm
Material: Neoprene
Part # 5079
#8 Standard O-Ring
ID: 10.82 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5080
#12 GM Hose Fitting O-Ring
ID: 15.6 mm
Thickness: 1.78 mm
Material: HNBR
Part # 5081
#8 Captive O-Ring
ID: 9.19 mm
Thickness: 2.62 mm
Material: HNBR
Part # 5160
