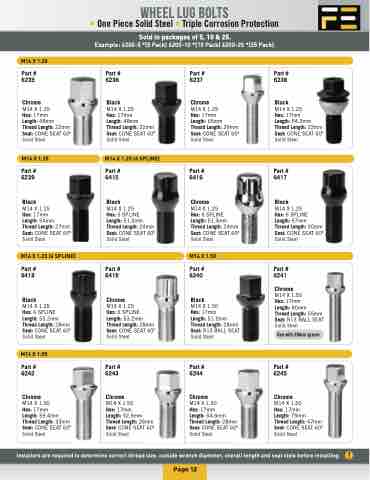

P. 13

WHEEL LUG BOLTS
• One Piece Solid Steel • Triple Corrosion Protection
   Sold in packages of 5, 10 & 25.
Example: 6200-5 *(5 Pack) 6200-10 *(10 Pack) 6200-25 *(25 Pack).
 M14 X 1.25
Part # 6235
Chrome
M14 X 1.25
Hex: 17mm
Length: 48mm
Thread Length: 22mm Seat: CONE SEAT 60o Solid Steel
M14 X 1.25
Part # 6239
Black
M14 X 1.25
Hex: 17mm
Length: 54mm
Thread Length: 27mm Seat: CONE SEAT 60o Solid Steel
M14 X 1.25 (6 SPLINE)
Part # 6418
Black
M14 X 1.25
Hex: 6 SPLINE Length: 53.2mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
M14 X 1.50
Part # 6242
Chrome
M14 X 1.50
Hex: 17mm
Length: 59.4mm Thread Length: 33mm Seat: CONE SEAT 60o Solid Steel
M14 X 1.25 (6 SPLINE)
Part # 6238
Black
M14 X 1.25
Hex: 17mm
Length: 54.3mm Thread Length: 22mm Seat: CONE SEAT 60o Solid Steel
Part # 6417
Black
M14 X 1.25
Hex: 6 SPLINE Length: 57mm
Thread Length: 30mm Seat: CONE SEAT 60o Solid Steel
Part # 6241
Chrome
M14 X 1.50
Hex: 17mm
Length: 80mm
Thread Length: 55mm Seat: R13 BALL SEAT Solid Steel
Use with 30mm spacer
Part # 6245
Chrome
M14 X 1.50
Hex: 17mm
Length: 75mm
Thread Length: 47mm Seat: CONE SEAT 60o Solid Steel
   Part # 6236
Black
M14 X 1.25
Hex: 17mm
Length: 48mm
Thread Length: 22mm Seat: CONE SEAT 60o Solid Steel
 Part # 6237
Chrome
M14 X 1.25
Hex: 17mm
Length: 65mm
Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
         Part # 6415
Black
M14 X 1.25
Hex: 6 SPLINE Length: 51.3mm Thread Length: 24mm Seat: CONE SEAT 60o Solid Steel
  Part # 6416
Chrome
M14 X 1.25
Hex: 6 SPLINE Length: 51.3mm Thread Length: 24mm Seat: CONE SEAT 60o Solid Steel
     M14 X 1.50
  Part # 6419
Chrome
M14 X 1.25
Hex: 6 SPLINE Length: 53.2mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
   Part # 6240
Black
M14 X 1.50
Hex: 17mm
Length: 51.5mm Thread Length: 28mm Seat: R13 BALL SEAT Solid Steel
        Part # 6243
Chrome
M14 X 1.50
Hex: 17mm
Length: 52.6mm Thread Length: 26mm Seat: CONE SEAT 60o Solid Steel
  Part # 6244
Chrome
M14 X 1.50
Hex: 17mm
Length: 54.6mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
    Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
