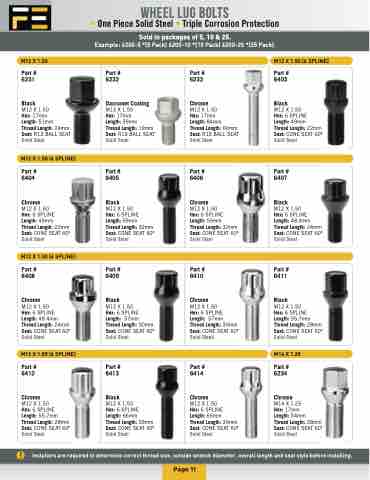

Page 12 - FMSI | Wheel Lug Nuts & Bolts Catalogue
P. 12

 WHEEL LUG BOLTS
• One Piece Solid Steel • Triple Corrosion Protection
  Sold in packages of 5, 10 & 25.
Example: 6200-5 *(5 Pack) 6200-10 *(10 Pack) 6200-25 *(25 Pack).
M12 X 1.50     M12 X 1.50 (6 SPLINE)
 Part # 6232
Dacromet Coating
M12 X 1.50
Hex: 17mm
Length: 39mm
Thread Length: 19mm Seat: R13 BALL SEAT Solid Steel
   Part # 6233
Chrome
M12 X 1.50
Hex: 17mm
Length: 84mm
Thread Length: 60mm Seat: R13 BALL SEAT Solid Steel
   Part # 6231
Black
M12 X 1.50
Hex: 17mm
Length: 51mm
Thread Length: 24mm Seat: R13 BALL SEAT Solid Steel
M12 X 1.50 (6 SPLINE)
Part # 6404
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 49mm
Thread Length: 22mm Seat: CONE SEAT 60o Solid Steel
M12 X 1.50 (6 SPLINE)
Part # 6408
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 48.4mm Thread Length: 24mm Seat: CONE SEAT 60o Solid Steel
Part # 6403
Black
M12 X 1.50
Hex: 6 SPLINE Length: 49mm
Thread Length: 22mm Seat: CONE SEAT 60o Solid Steel
Part # 6407
Black
M12 X 1.50
Hex: 6 SPLINE Length: 48.4mm Thread Length: 24mm Seat: CONE SEAT 60o Solid Steel
Part # 6411
Black
M12 X 1.50
Hex: 6 SPLINE Length: 55.7mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
    Part # 6405
Black
M12 X 1.50
Hex: 6 SPLINE Length: 59mm
Thread Length: 32mm Seat: CONE SEAT 60o Solid Steel
   Part # 6406
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 59mm
Thread Length: 32mm Seat: CONE SEAT 60o Solid Steel
        Part # 6409
Black
M12 X 1.50
Hex: 6 SPLINE Length: 57mm Thread Length: 30mm Seat: CONE SEAT 60o Solid Steel
  Part # 6410
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 57mm Thread Length: 30mm Seat: CONE SEAT 60o Solid Steell
   M12 X 1.50 (6 SPLINE)     M14 X 1.25
   Part # 6413
Black
M12 X 1.50
Hex: 6 SPLINE Length: 66mm
Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
 Part # 6414
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 66mm
Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
    Part # 6412
Chrome
M12 X 1.50
Hex: 6 SPLINE Length: 55.7mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
Part # 6234
Chrome
M14 X 1.25
Hex: 17mm
Length: 54mm
Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
 Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
