P. 10

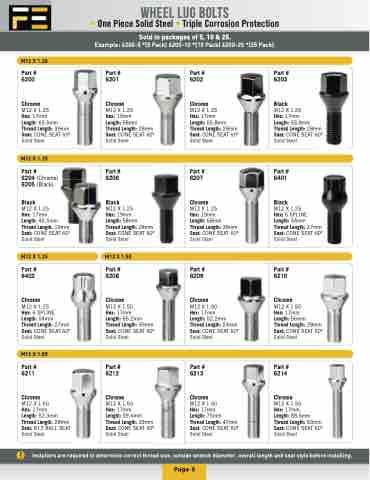

 WHEEL LUG BOLTS
• One Piece Solid Steel • Triple Corrosion Protection
  Sold in packages of 5, 10 & 25.
Example: 6200-5 *(5 Pack) 6200-10 *(10 Pack) 6200-25 *(25 Pack).
 M12 X 1.25
Part # 6200
Chrome
M12 X 1.25
Hex: 17mm
Length: 65.5mm Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
M12 X 1.25
Part #
6204 (Chrome) 6205 (Black)
Black
M12 X 1.25
Hex: 17mm
Length: 46.5mm Thread Length: 19mm Seat: CONE SEAT 60o Solid Steel
M12 X 1.25
Part # 6402
Chrome
M12 X 1.25
Hex: 6 SPLINE Length: 54mm
Thread Length: 27mm Seat: CONE SEAT 60o Solid Steel
M12 X 1.50
Part # 6211
Chrome
M12 X 1.50
Hex: 17mm
Length: 52.3mm Thread Length: 28mm Seat: R13 BALL SEAT Solid Steel
M12 X 1.50
Part # 6203
Black
M12 X 1.25
Hex: 17mm
Length: 55.8mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
Part # 6401
Black
M12 X 1.25
Hex: 6 SPLINE Length: 54mm
Thread Length: 27mm Seat: CONE SEAT 60o Solid Steel
Part # 6210
Chrome
M12 X 1.50
Hex: 17mm
Length: 56mm
Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
Part # 6214
Chrome
M12 X 1.50
Hex: 17mm
Length: 88.5mm Thread Length: 60mm Seat: CONE SEAT 60o Solid Steel
  Part # 6201
Chrome
M12 X 1.25
Hex: 19mm
Length: 58mm
Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
  Part # 6202
Chrome
M12 X 1.25
Hex: 17mm
Length: 55.8mm Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
        Part # 6206
Black
M12 X 1.25
Hex: 19mm
Length: 58mm
Thread Length: 28mm Seat: CONE SEAT 60o Solid Steel
     Part # 6207
Chrome
M12 X 1.25
Hex: 19mm
Length: 68mm
Thread Length: 38mm Seat: CONE SEAT 60o Solid Steel
             Part # 6208
Chrome
M12 X 1.50
Hex: 17mm
Length: 65.2mm Thread Length: 39mm Seat: CONE SEAT 60o Solid Steel
  Part # 6209
Chrome
M12 X 1.50
Hex: 17mm
Length: 52.2mm Thread Length: 24mm Seat: CONE SEAT 60o Solid Steel
       Part # 6212
Chrome
M12 X 1.50
Hex: 17mm
Length: 59.4mm Thread Length: 33mm Seat: CONE SEAT 60o Solid Steel
  Part # 6213
Chrome
M12 X 1.50
Hex: 17mm
Length: 75mm
Thread Length: 47mm Seat: CONE SEAT 60o Solid Steel
    Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
