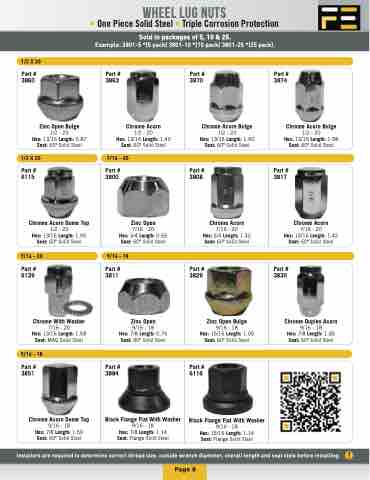

WHEEL LUG NUTS
• One Piece Solid Steel • Triple Corrosion Protection
   Sold in packages of 5, 10 & 25.
Example: 3801-5 *(5 pack) 3801-10 *(10 pack) 3801-25 *(25 pack).
 1/2 X 20
Part # 3860
Zinc Open Bulge
1/2 - 20
Hex: 13/16 Length: 0.87 Seat: 60o Solid Steel
1/2 X 20
Part # 6115
Chrome Acorn Dome Top
1/2 - 20
Hex: 13/16 Length: 1.50 Seat: 60o Solid Steel
7/16 - 20
Part # 6139
Chrome With Washer
7/16 - 20
Hex: 13/16 Length: 1.58 Seat: MAG Solid Steel
9/16 - 18
Part # 3851
Chrome Acorn Dome Top
9/16 - 18
Hex: 7/8 Length: 1.50 Seat: 60o Solid Steel
7/16 - 20
Part # 3874
Chrome Acorn Bulge
1/2 - 20
Hex: 13/16 Length: 1.58 Seat: 60o Solid Steel
Part # 3817
7/16 - 20
Hex: 13/16 Length: 1.42 Seat: 60o Solid Steel
Part # 3830
Chrome Duplex Acorn
9/16 - 18
Hex: 7/8 Length: 1.85 Seat: 60o Solid Steel
   Part # 3863
1/2 - 20
Hex: 13/16 Length: 1.40 Seat: 60o Solid Steel
Chrome Acorn
  Part # 3870
Chrome Acorn Bulge
1/2 - 20
Hex: 13/16 Length: 1.40 Seat: 60o Solid Steel
       Part # 3800
7/16 - 20
Hex: 3/4 Length: 0.55 Seat: 60o Solid Steel
 Zinc Open
  Part # 3808
7/16 - 20
Hex: 3/4 Length: 1.32 Seat: 60o Solid Steel
Chrome Acorn
   Chrome Acorn
  9/16 - 18
  Part # 3811
9/16 - 18
Hex: 7/8 Length: 0.75 Seat: 60o Solid Steel
 Zinc Open
   Part # 3829
9/16 - 18
Hex: 15/16 Length: 1.05 Seat: 60o Solid Steel
Zinc Open Bulge
         Part # 3884
Black Flange Flat With Washer
9/16 - 18
Hex: 7/8 Length: 1.14 Seat: Flange Solid Steel
  Part # 6116
Black Flange Flat With Washer
9/16 - 18
Hex: 15/16 Length: 1.14 Seat: Flange Solid Steel
   Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
