P. 8

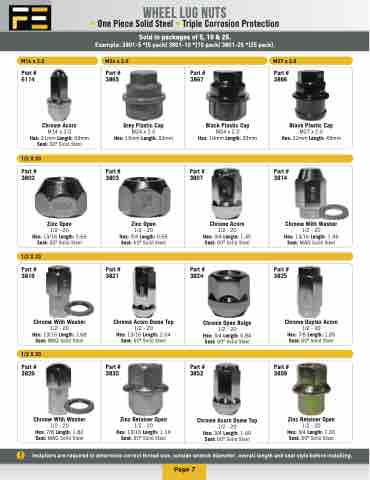

 WHEEL LUG NUTS
• One Piece Solid Steel • Triple Corrosion Protection
  Sold in packages of 5, 10 & 25.
Example: 3801-5 *(5 pack) 3801-10 *(10 pack) 3801-25 *(25 pack).
 M14 x 2.0
Part # 6114
M14 x 2.0
Hex: 21mm Length: 63mm Seat: 60o Solid Steel
M24 x 2.0     M27 x 2.0
Part # 3866
M27 x 2.0
Hex: 22mm Length: 45mm
Part # 3814
Chrome With Washer
1/2 - 20
Hex: 13/16 Length: 1.46 Seat: MAG Solid Steel
Part # 3825
Chrome Duplex Acorn
1/2 - 20
Hex: 7/8 Length: 1.85 Seat: 60o Solid Steel
Part # 3859
Zinc Retainer Open
1/2 - 20
Hex: 3/4 Length: 1.30 Seat: 60o Solid Steel
  Part # 3865
M24 x 2.0
Hex: 19mm Length: 33mm
Grey Plastic Cap
  Part # 3867
M24 x 2.0
Hex: 19mm Length: 33mm
Black Plastic Cap
    Chrome Acorn
Black Plastic Cap
 1/2 X 20
Part # 3802
1/2 - 20
Hex: 13/16 Length: 0.66 Seat: 60o Solid Steel
1/2 X 20
Part # 3816
Chrome With Washer
1/2 - 20
Hex: 13/16 Length: 1.68 Seat: MAG Solid Steel
1/2 X 20
Part # 3826
Chrome With Washer
1/2 - 20
Hex: 7/8 Length: 1.82 Seat: MAG Solid Steel
  Part # 3803
1/2 - 20
Hex: 3/4 Length: 0.56 Seat: 60o Solid Steel
 Zinc Open
  Part # 3807
1/2 - 20
Hex: 3/4 Length: 1.40 Seat: 60o Solid Steel
Chrome Acorn
       Zinc Open
    Part # 3821
Chrome Acorn Dome Top
1/2 - 20
Hex: 13/16 Length: 2.04 Seat: 60o Solid Steel
 Part # 3824
Chrome Open Bulge
1/2 - 20
Hex: 3/4 Length: 0.84 Seat: 60o Solid Steel
          Part # 3835
Zinc Retainer Open
1/2 - 20
Hex: 13/16 Length: 1.19 Seat: 60o Solid Steel
  Part # 3852
Chrome Acorn Dome Top
1/2 - 20
Hex: 3/4 Length: 1.60 Seat: 60o Solid Steel
       Installers are required to determine correct thread size, outside wrench diameter, overall length and seat style before installing.
