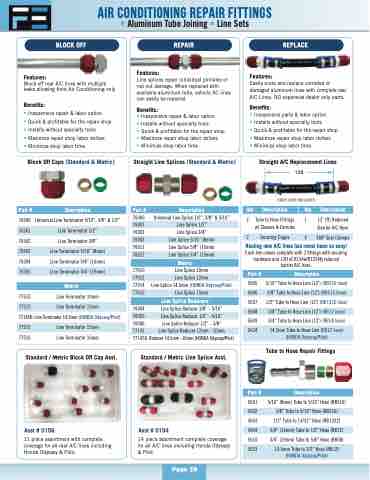

Page 30 - FMSI Air Conditioning Catalogue | ENGLISH

AIR CONDITIONING REPAIR FITTINGS
• Aluminum Tube Joining • Line Sets
BLOCK OFF
REPAIR REPLACE
Features:
Block off rear A/C lines with multiple
leaks allowing front Air Conditioning only
Benefits:
• Inexpensive repair & labor option
• Quick & profitable for the repair shop
• Installs without specialty tools
• Maximize repair shop labor dollars
• Minimize shop labor time
Features:
Line splices repair individual pinholes or
rub out damage. When replaced with
available aluminum tube, vehicle AC lines
can easily be repaired.
Benefits:
• Inexpensive repair & labor option
• Installs without specialty tools
• Quick & profitable for the repair shop
• Maximize repair shop labor dollars
• Minimize shop labor time
Features:
Easily route and replace corroded or
damaged aluminum lines with complete rear
A/C Lines. NO expensive dealer only parts.
Benefits:
• Inexpensive parts & labor option
• Installs without specialty tools
• Quick & profitable for the repair shop
• Maximize repair shop labor dollars
• Minimize shop labor time
Block Off Caps (Standard & Metric) Straight Line Splices (Standard & Metric)
Straight A/C Replacement Lines
12ft
EACH LINE INCLUDES
Part # Description
Part # Description
Qty Description
Qty Description
76000 Universal Line Splice 1/2”, 3/8” & 5/16”
76500 Universal Line Terminator 5/16”, 3/8” & 1/2”
76001 Line Splice 1/2”
2 Tube to Hose Fittings
w/ Sleeves & Ferrules
1 12’ (ft) Reduced
Barrier A/C Hose
76501 Line Terminator 1/2”
76002 Line Splice 3/8”
2 Securing Cages
76502 Line Terminator 3/8”
76003 Line Splice 5/16” (8mm)
4 360º Seal Clamps
76011 Line Splice 5/8” (16mm)
76503 Line Terminator 5/16” (8mm)
76012 Line Splice 3/4” (19mm)
76504 Line Terminator 5/8” (16mm)
Metric
Routing new A/C lines has never been so easy!
Each line comes complete with 2 fittings with securing
hardware and 12ft of R134a/R1234fy reduced
barrier A/C hose.
76505 Line Terminator 3/4” (19mm)
77010 Line Splice 10mm
Part # Description
77012 Line Splice 12mm
Metric
77014 Line Splice 14.5mm (HONDA Odyssey/Pilot)
5605 5/16” Tube to Hose Line (12’) (RB516 hose)
77015 Line Splice 15mm
5606 3/8” Tube to Hose Line (12’) (RB516 hose)
77510 Line Terminator 10mm
Line Splice Reducers
5607 1/2” Tube to Hose Line (12’) (RB1332 hose)
77512 Line Terminator 12mm
76004 Line Splice Reducer 3/8” - 5/16”
5608 5/8” Tube to Hose Line (12’) (RB12 hose)
77145B Line Terminator 14.5mm (HONDA Odyssey/Pilot)
76005 Line Splice Reducer 1/2” - 5/16”
5609 3/4” Tube to Hose Line (12’) (RB58 hose)
76006 Line Splice Reducer 1/2” - 3/8”
77515 Line Terminator 15mm
77103 Line Splice Reducer 12mm - 10mm
5634 77516 Line Terminator 16mm
77145U Reducer 14.5mm -16mm (HONDA Odyssey/Pilot)
14.5mm Tube to Hose Line (RB12 hose)
(HONDA Odyssey/Pilot)
Tube to Hose Repair Fittings
Standard / Metric Block Off Cap Asst.
Standard / Metric Line Splice Asst.
Part # Description
5601 5/16” (8mm) Tube to 5/16” Hose (RB516)
5602 3/8” Tube to 5/16” Hose (RB516)
5603 1/2” Tube to 13/32” Hose (RB1332)
Asst # 0156
11 piece assortment with complete
coverage for all rear A/C lines including
Honda Odyssey & Pilot.
Asst # 0154
14 piece assortment complete coverage
for all A/C lines including Honda Odyssey
& Pilot.
5604 5/8” (16mm) Tube to 1/2” Hose (RB12)
5610 3/4” (19mm) Tube to 5/8” Hose (RB58)
5633 14.5mm Tube to 1/2” Hose (RB12)
(HONDA Odyssey/Pilot)
